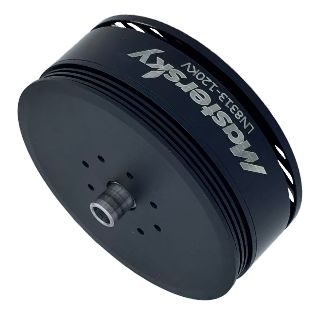

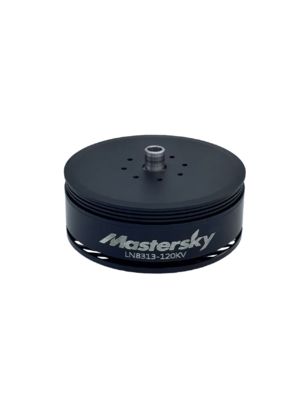

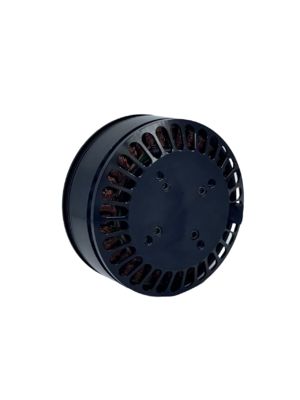

Created with Pixso. LN8313D24-001 120KV Drone motor for 40-50inch drones/eVTOl

LN8313D24-001 120KV Drone motor for 40-50inch drones/eVTOl

Nom De La Marque: Retek
Numéro De Modèle: engrenages en acier
MOQ: 1000
Prix: Négociable
Délai De Livraison: 14days
Informations détaillées
Lieu d'origine:
Chine
Certification:
CCC, UL
Détails d'emballage:
25pcs / carton
Capacité d'approvisionnement:
10000 PC / mois
Description du produit

The motor model LN8313D60-001 (120KV) has a rated voltage of 60VDC and rotates counterclockwise (CCW) from the shaft extension end.



It has significant advantages. The power assembly is lightweight (only 0.95Kg) but can provide a maximum thrust of 15.3Kg, resulting in a high power density. It has excellent current control performance, with a continuous working current of only 14A, leading to high energy efficiency. At the same time, its performance indicators in terms of vibration, noise, and insulation are strict, ensuring strong operational stability and reliability.





  • Rated Voltage: 60VDC
  • Motor Rotation Direction: CCW rotation;
  • Motor Withstand Voltage Test: ADC 600V/3mA/1Sec
  • No-Load Performance: 3600±10% RPM (Revolutions Per Minute) / 1.5A Max (maximum current)
  • Load Performance: 2770±10% RPM / 75.9A±10% / 13.7N·m (Newton - meter, torque)
  • Motor Vibration: ≤7 m/s²
  • Backlash: 0.01 - 0.2mm
  • Noise: ≤60dB/1m (ambient noise ≤45dB during testing)
  • Insulation Class: CLASS F
  • Motor Operation: No abnormal phenomena such as smoke, peculiar smell, abnormal noise, or end play during operation
  • Motor Appearance: Clean and free of rust
